19" VOLNĚ STOJÍCÍ RACKOVÁ SKŘÍŇ 42U/800X800 S PERFOROVANÝMI DVEŘMI ČERNÁ (SMONTOVANÁ)

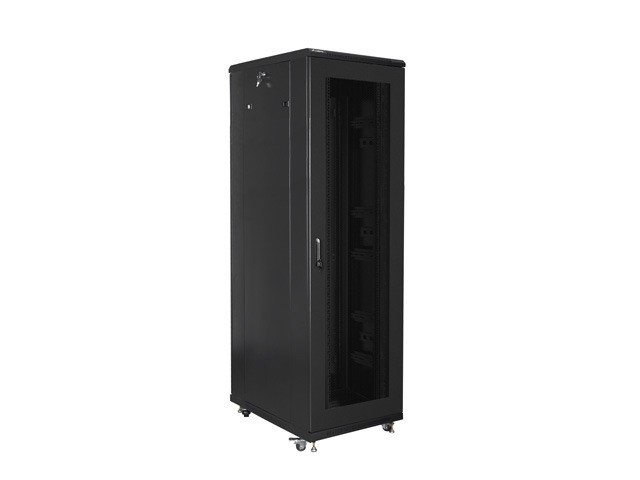

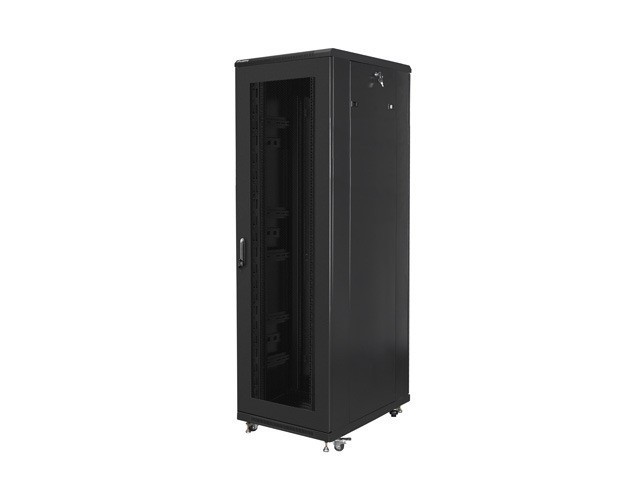

Lanberg FA01-8842-23B assembled freestanding cabinet, is a solution for network expansion, installation of cabling and equipment of 19" size and 800 kg maximum load capacity.

It can be used in networks, server rooms, small and medium-sized businesses and data centers that need a lot of rack space for network equipment. What's more, this particular cabinet can also work with low-voltage systems such as cable TV networks, alarm systems, fire and access control systems, CCTV or IP surveillance.

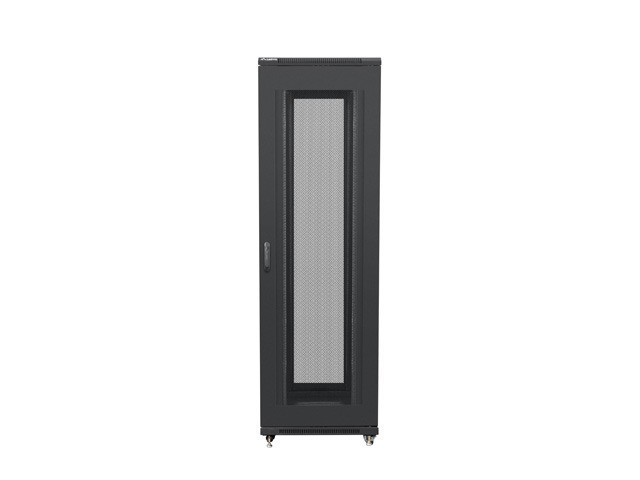

The structure of the product is made of high-quality cold-rolled steel, which is characterized by excellent design and high quality workmanship. The cabinet allows full depth adjustment of the vertical mounting rails. In addition, it is equipped with a front perforated door with a lock and the possibility of mounting this door on the right or left side.

This server product has removable side panels (each with a lock) and a rear door also perforated with a lock. Cabling can be routed through the cable holes located at the top and bottom (with blank entry panels) of the cabinet. The fan tray contains 4 230-volt fans.

Finally, the package includes a vertical cable organizer, additional rail mounting accessories, M6 cage nuts and blank input panels.

Features:
- Manufactuer: Lanberg,
- Manufactuer code: FA01-8842-12B,
- Cabinet type: Free-standing,
- Color: Black RAL9004,
- Height: 42U,
- Cabinet dimensions (W x D x H): 800x800x2047.5 mm,
- Height (top panel - bottom panel): 1968.5 mm,
- Height (top panel - ground): 2041.5 mm,
- Height (top panel - ground including screws): 2047.5 mm,
- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: To 800 KG,
- Degree of protection: IP20,
- Top with fan tray: included 4 fans 230V in top cover,
- Doors type: Front - Perforated, Rear - Perforated,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Sheet thickness: front door – 1.5 mm; vertical mounting rails – 2.00 mm; mounting profile – 2.00 mm; others – 1.50 mm – 1.20 mm,
- Cable entry panel: Top, Bottom (adjustable),
- Packaging includes: Accessory bag, locks for front and rear doors and two side panels, 2 vertical cable management panels, ventilation panel, feet, casters with brakes, grounding kit.
