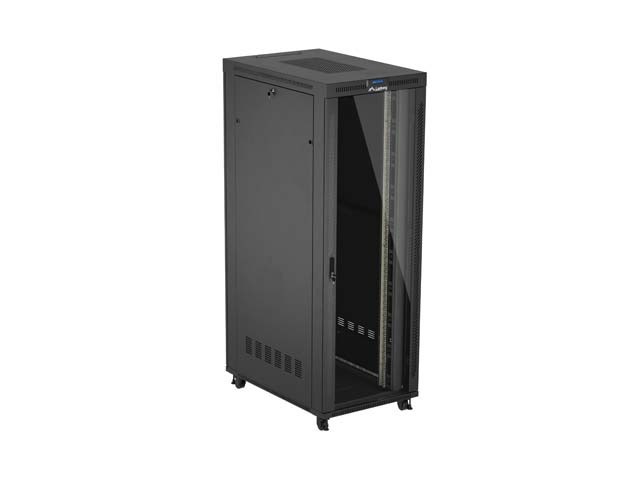

Lanberg FF01-8247-12BL V2 single-section standing rack is the ideal solution for professional installers building networks, performing cable installations and assembling 19" equipment. This reliable rack offers an increased maximum total load capacity from 800 kg to 1200 kg, ensuring robustness and security of the installation.



Our rack is specially designed for data centers that require large rack space for equipment. It is ideal for extensive networks and server rooms, serving small, medium and large companies and corporations. In addition, it is an excellent choice for low-voltage installations such as cable TV networks, alarm, fire, access control, CCTV and IP surveillance systems.

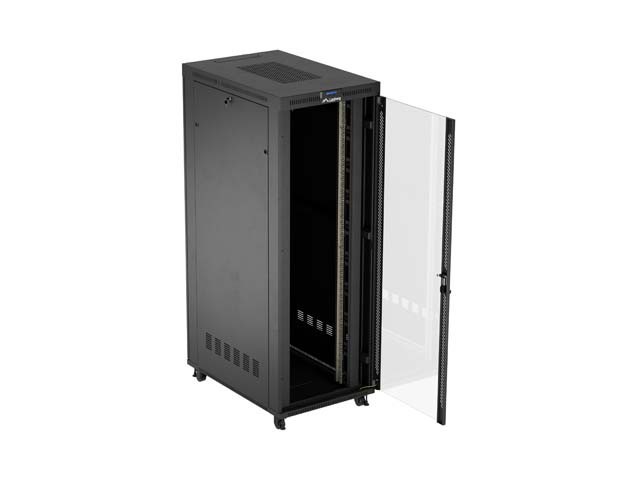

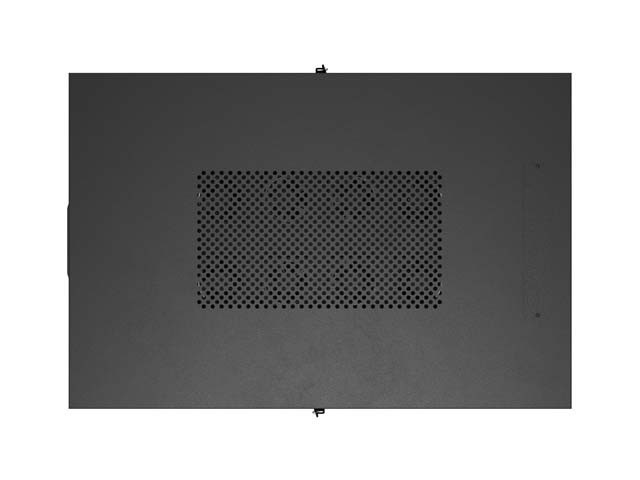

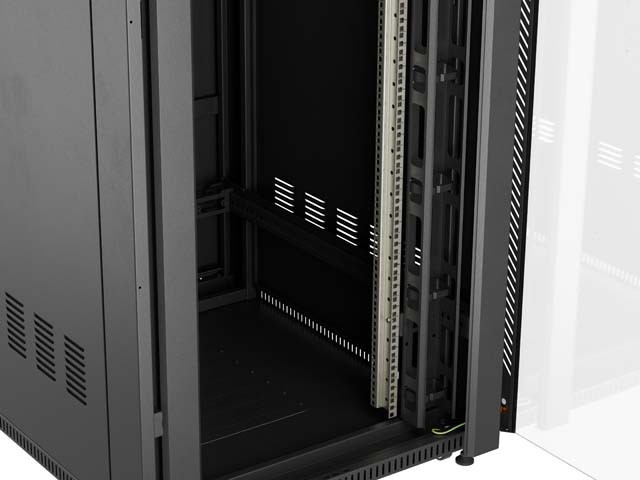

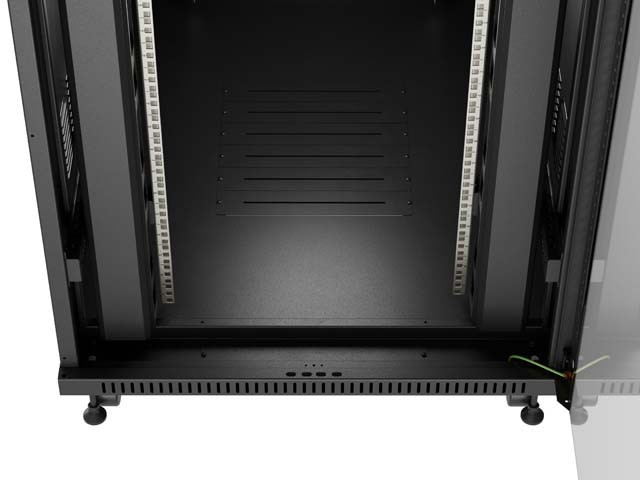

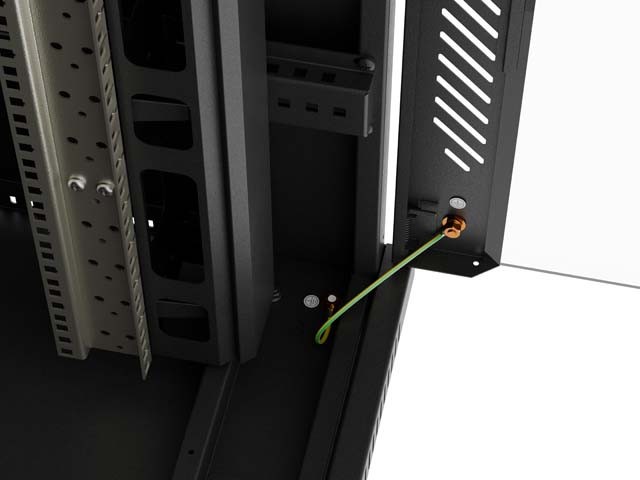

The cabinet's construction is made of high-quality rolled steel, providing excellent design and craftsmanship. It has adjustable depth of vertical mounting rails to accommodate different types of equipment. Grounding accessories are included, including cable and nuts. Grounding pins are located in three parts of the cabinet - the frame, front door and rear door, providing comprehensive grounding of the installation. The Lanberg cabinet also features lockable top and bottom panels with blanking panels for convenient cable entry and concealment. This ensures a neat and well-organized installation, minimizing cable clutter. In addition, the cabinet is equipped with a glass front door and metal rear door. It offers the option of mounting the door on the right or left side. The side panels are removable (with locks included), and the rear door is solid steel with a lock. The cabinet also has a front-mounted LCD display with thermostat function, displaying important information such as internal temperature, current time and fan status.

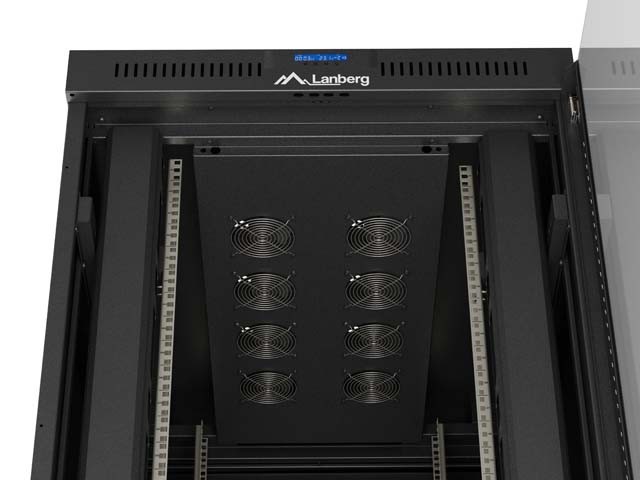

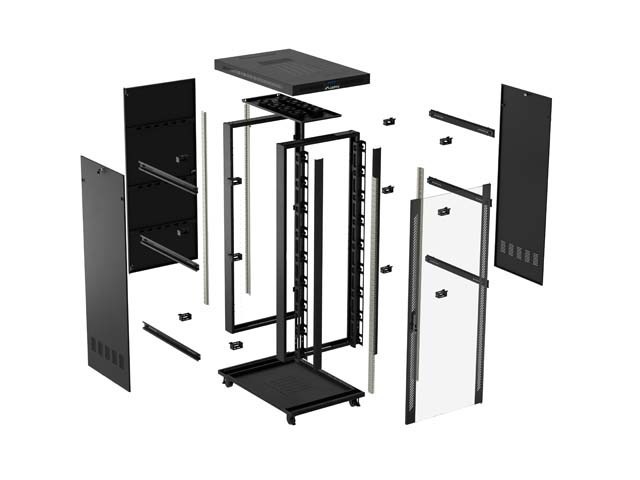

It also comes with a ventilation panel with eight 230V fans, mounting accessories for support rails, two vertical cable organizers, M6 screws, semi-finished input panels, grounding kit, casters and feet. For easy transport, the rack is packaged in four flat packs for self-assembly.




Choose Lanberg rack cabinet to provide reliable and professional installation solutions for your projects!


Features:
- Manufactuer: Lanberg,
- Manufactuer code: FF01-8247-12BL,
- Cabinet type: Freestanding,
- Body color: Black RAL9004,
- Height: 47U,
- Cabinet dimensions (W x D x H): 800x1200x2350 mm,
- Height (top panel - bottom panel): 2247 mm,
- Height (top panel - ground): 2343 mm,
- Height (top panel - ground including screws): 2350 mm,
- LCD display: Yes,

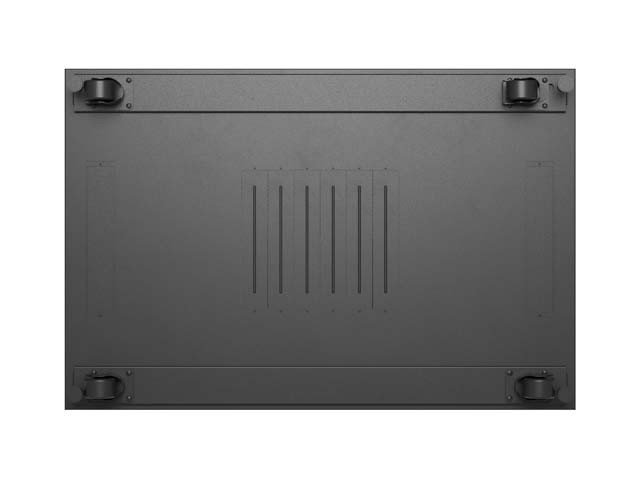

- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: to 1200 KG,
- Degree of protection: IP20,
- Top with fan tray: included 8 fans 230V in top cover and thermostat,

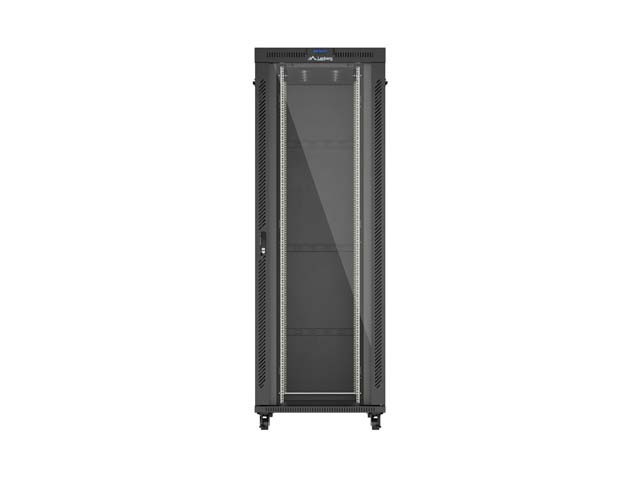

- Doors type: Front - Glass door, Rear - Metal door,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Cable entry panel: Top, Bottom (adjustable),
- Packaging includes: Accessory bag, locks for front and rear doors and two side panels, 20 cage nuts M6, 2x vertical cable management panels, grounding kit.
